This video
(originally sold as a DVD) is a series of videos being developed to cover the entire build
process for the CH750 kit. WINGS is a great starting
place to begin your project – there are no prerequisite
assemblies that need to be completed before starting. To get started,
you only need a legal set of plans for the aircraft and at least the
wings sub
kit from Zenith. The WINGS DVDs take you from the
very beginning steps of assembling the wing skeleton and includes the
fuel tank installation. The entire construction of the wing is

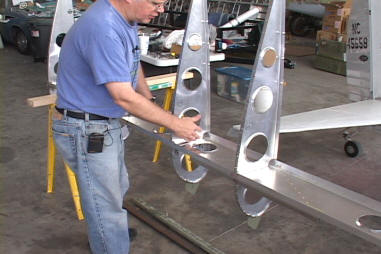

accomplished using a single set of saw horses - no fancy tables or
workbench required! The pictures on this page were captured from the actual
video footage in order to show the scope of construction provided in
this video volume.
Note: This production is not
associated or endorsed by Zenith Aircraft. It does not replace or
supersede the documentation provided with the kit. It is meant to
be an aid in building the aircraft and its methods are presented only as
a suggestion to builders.
This video is approximately
2.75
hours in length and is divided into various video chapters to make
navigation and review of desired sections fast and easy.
Tip rib assembly

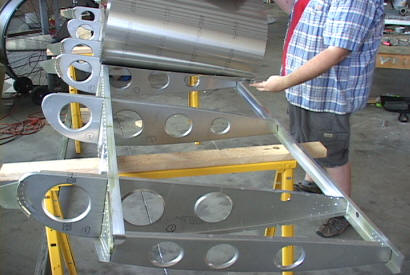

Rolling the bottom skin into position
Trailing edge installation
Fuel tank installation
Pitot tube installation
Cable and fuel routing
Strut pickup detail |

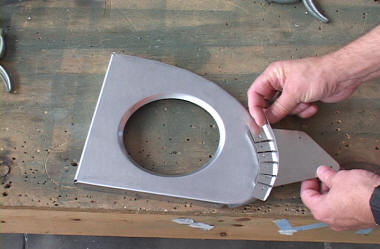

Assembling the nose ribs brackets

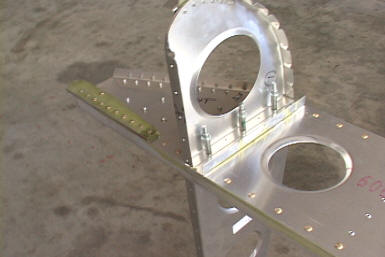

Installing ribs on spar
Nose rib installation detail
Rear spar channel installation

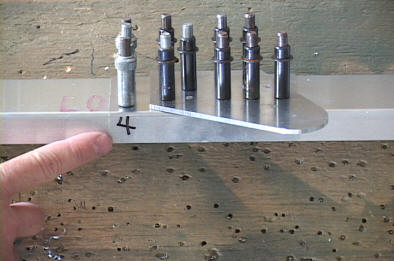

Rear channel fitting

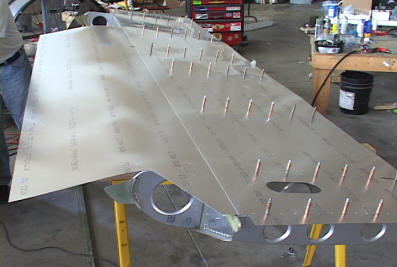

Installing nose skin

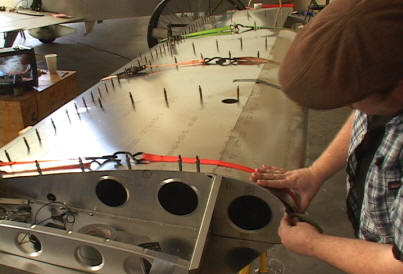

Strapping procedure for nose skin

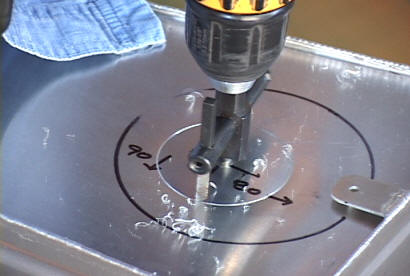

Hole cutting for fuel sender
Strobe and wingtip installation

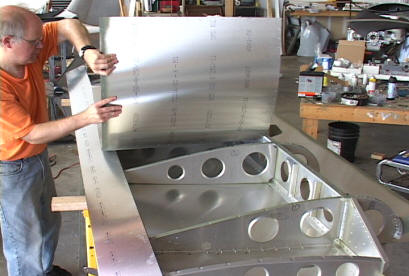

Rolling the top skin into place
Final riveting
|
