This video
(originally sold as a DVD) is a series of videos being developed to cover the entire build
process for the CH750 kit. SLATS & FLAPS is a great starting
place to begin your project – there are no prerequisite
assemblies that need to be completed before starting. (Your
CH750 Wings need to be completed before installation is possible!)To get started,
you only need a legal set of plans for the aircraft and the appropriate
kit components from Zenith. The SLATS & FLAPS DVD takes you from the
very beginning steps of assembling the slats and flaperons to their
completion. Installation of these components onto the wing is
discussed, but the procedures for installation is not demonstrated in
this video. The pictures on this page were captured from the actual
video footage in order to show the scope of construction provided in
this video volume.
Note: This production is not
associated or endorsed by Zenith Aircraft. It does not replace or
supersede the documentation provided with the kit. It is meant to
be an aid in building the aircraft and its methods are presented only as
a suggestion to builders.
This video is approximately
1.25
hours in length and is divided into various video chapters to make
navigation and review of desired sections fast and easy

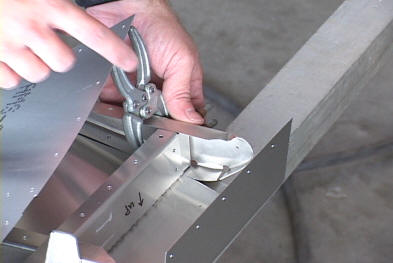

Constructing flap brackets

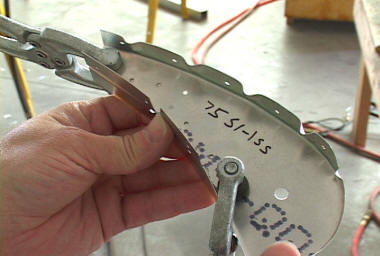

Clamping flap tip rib for drilling

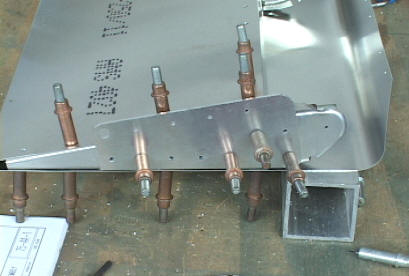

Assembling flap horn

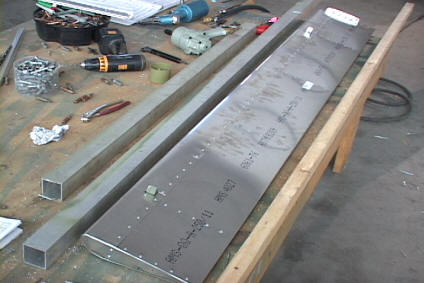

Flap completed
|

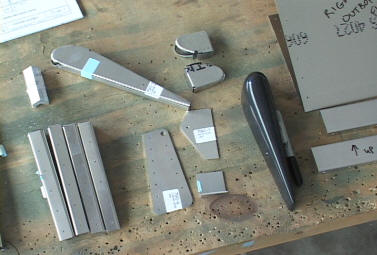

Taking parts inventory before starting

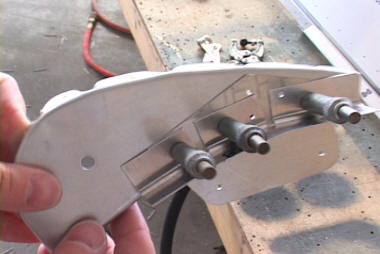

Constructing the slat rib assembly
Clamping technique for drilling

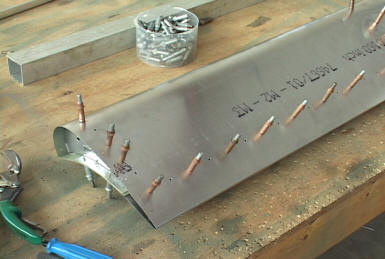

Clecoing slat prior to riveting

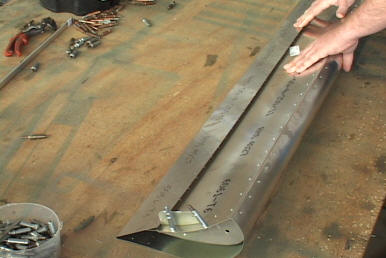

Folding slat skin into place

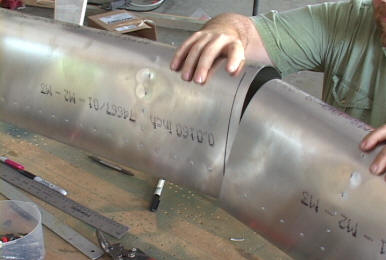

Joining inboard and outboard slats
Folding flap skin

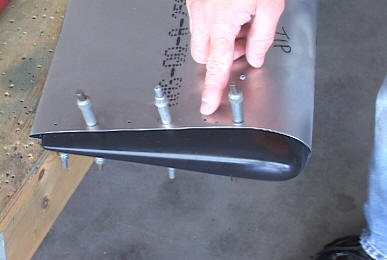

Installing flap tip
|
