This video
(originally sold as a DVD) is a series of videos being developed to cover the entire build
process for the CH750 kit. HORIZONTAL TAIL is a great starting
place to begin your project – there are no prerequisite
assemblies that need to be completed before starting. To get started,
you only need a legal set of plans for the aircraft and at least the
tail sub
kit from Zenith. The HORIZONTAL TAIL DVDs take you from the
very beginning steps of assembling the stabilizer and elevator sections
of the aircraft's tail. The pictures on this page were captured from the actual
video footage in order to show the scope of construction provided in
this video volume.
Note: This production is not
associated or endorsed by Zenith Aircraft. It does not replace or
supersede the documentation provided with the kit. It is meant to
be an aid in building the aircraft and its methods are presented only as
a suggestion to builders.
This video is approximately
2.5
hours in length and is divided into various video chapters to make
navigation and review of desired sections fast and easy

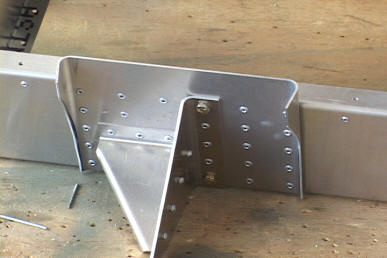

Stabilizer hinge bracket construction

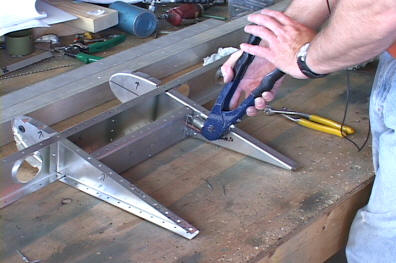

Hand riveting elevator skeleton

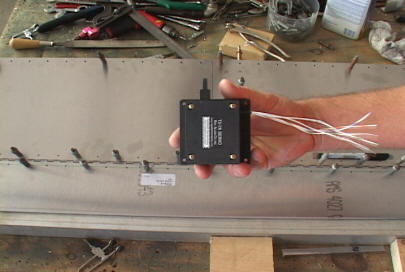

Trim tab servo assembly

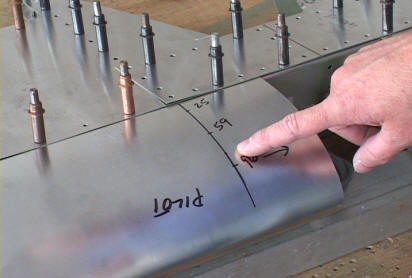

Preparing for nose rib drilling

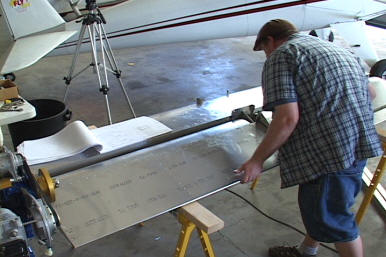

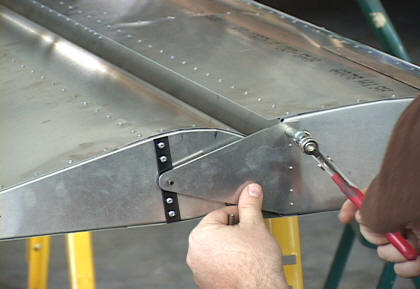

Aligning the elevator and stabilizer hinges
|

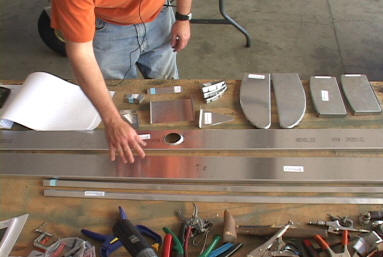

Taking parts inventory before starting

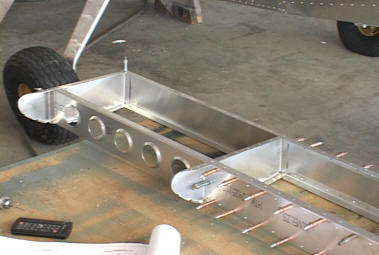

Constructing the stabilizer skeleton

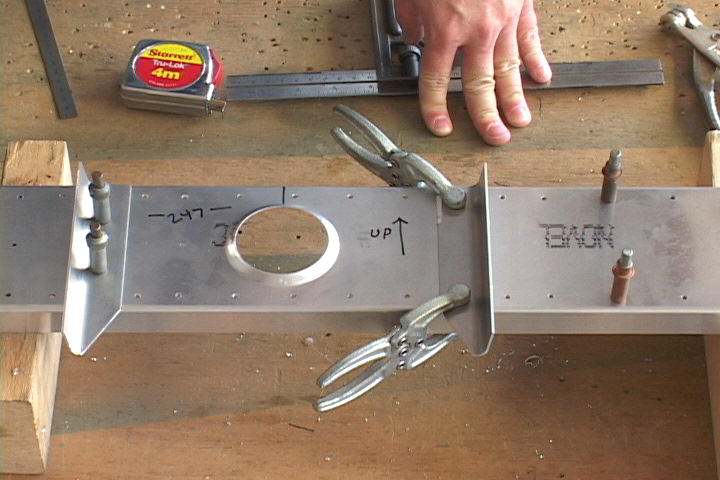

Bracket alignment for drilling

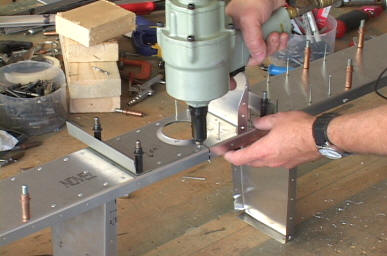

Riveting stabilizer with air gun

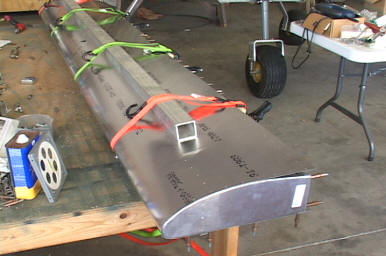

Strapping skin for drilling

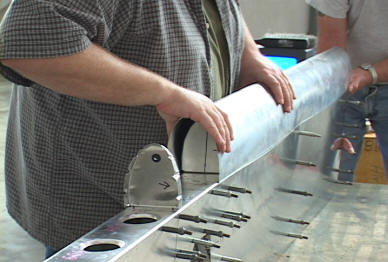

Installing nose skin on elevator

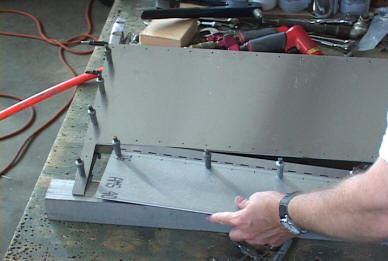

Installing trim tab
Joining the stabilizer and elevator
|
