This video
(originally sold as a DVD) is a series of videos being developed to cover the entire build
process for the CH750 kit. Finishing is the final segment of
building demonstrations. This shows the final assembly
of the airframe including: mounting the horizontal tail, wings, and
rigging the cables and controls of the aircraft. In addition,
installation and routing of fuel lines and other plumbing details is
shown. Except for engine and avionics, this video concludes the
building process for the airframe. It is assumed the builder has
completed the steps shown in the prior 750 building video series (
Fuselage 1 and 2, Horizontal Tail, Wings,
Slats & Flaps ) The pictures on this page were captured from the actual
video footage in order to show the scope of construction provided in
this video volume.
Note: This production is not
associated or endorsed by Zenith Aircraft. It does not replace or
supersede the documentation provided with the kit. It is meant to
be an aid in building the aircraft and its methods are presented only as
a suggestion to builders.
This video is approximately
2.5
hours in length and is divided into various video chapters to make
navigation and review of desired sections fast and easy
Rudder cable attachments

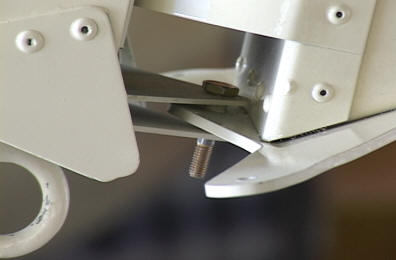

Rudder hinge assembly

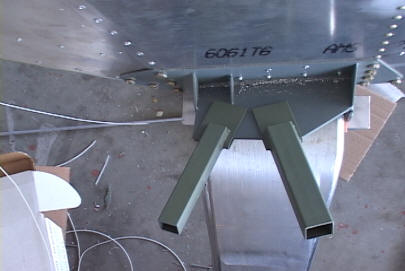

Strut fitting placement on fuselage
Fitting bolted to strut
Strut length sizing and attachment

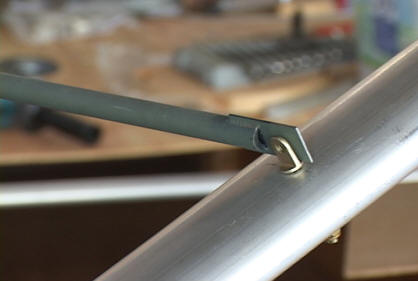

Installing jury struts

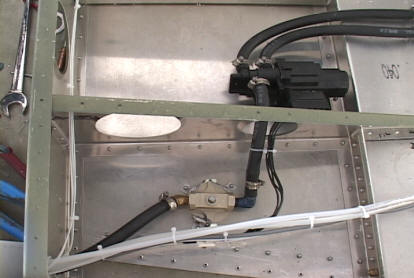

Gascolator under seat
Creating routes for fuel/brake lines |

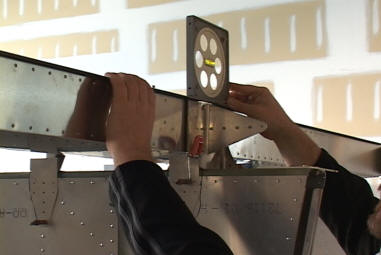

Mounting and aligning the stabilizer

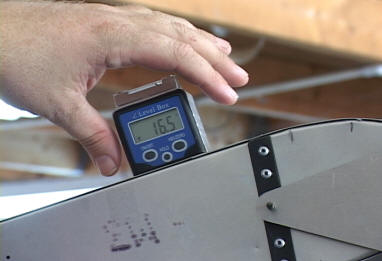

Measuring range of elevator travel

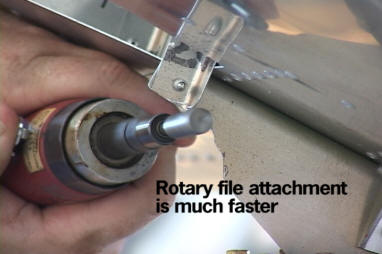

Trimming elevator horn for proper travel
Rigging elevator cables

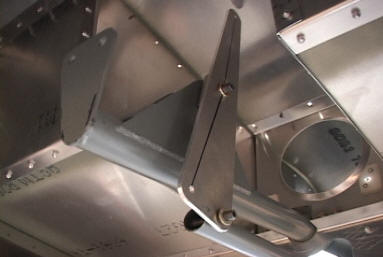

Assembling control horn
Strut fitting inventory
Drilling struts for fitting

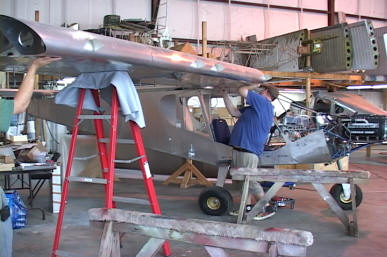

Lifting wing into place
Rigging wing dihedral
Bubble door installation

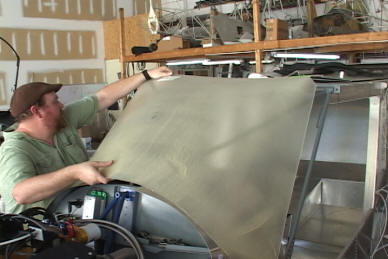

Windshield installation
Routing of plumbing under seat

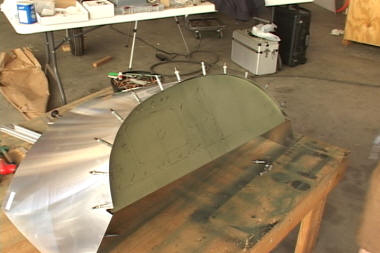

Panel and top skin assembly |
